1. Overview

---

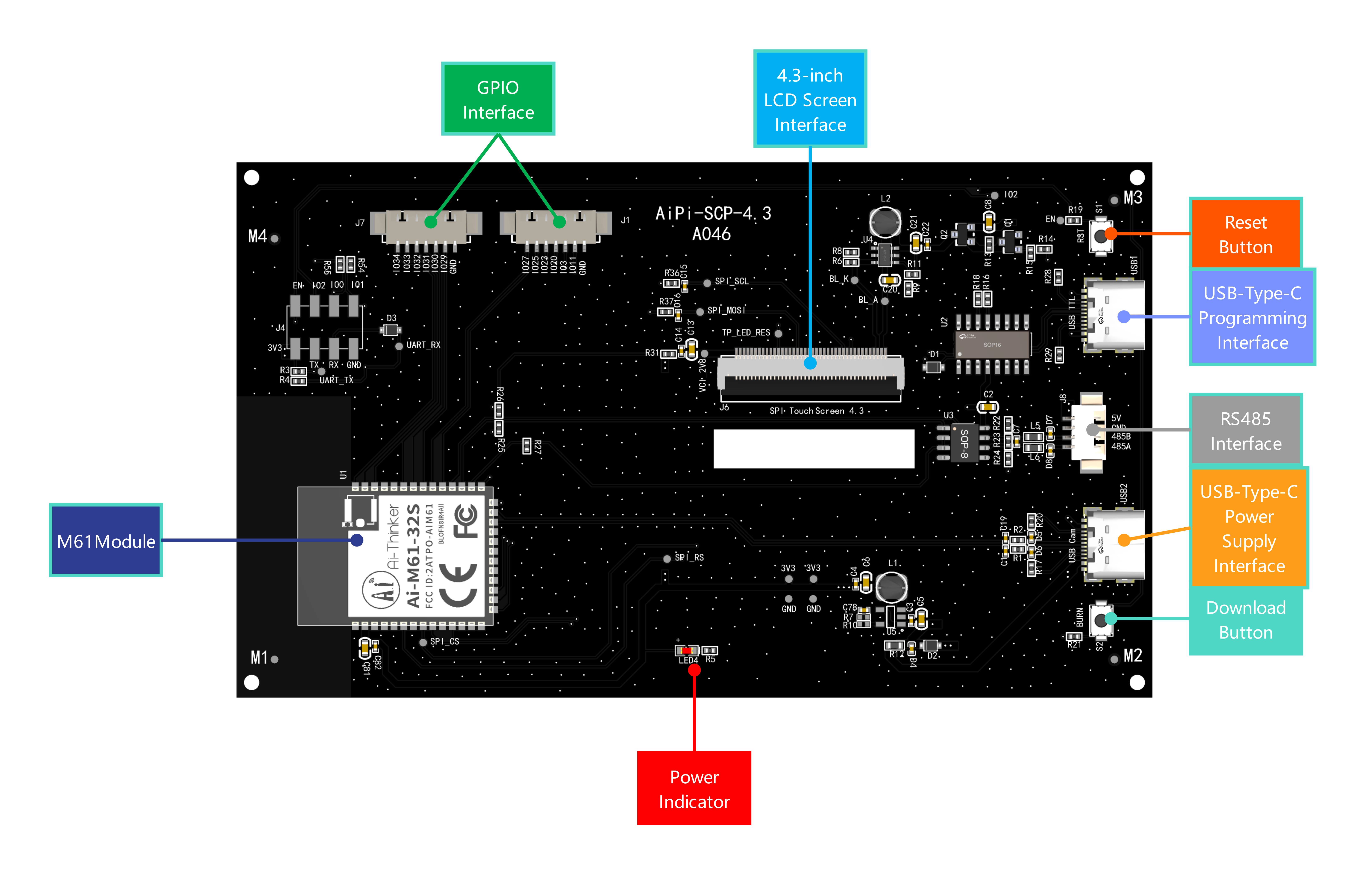

AiPi-SCP-4.3

• AiPi-SCP-4.3 uses the Ai-M61-32S module as the control core, powered by a Type-C interface, connected to a 4.3-inch RGB LCD via an SPI interface, and equipped with an external TTL-to-485 converter for 485 protocol communication, suitable for electric vehicles and other two-wheeler devices.
• The Ai-M61-32S module features rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO, among others.

2. Development Resources

▫️ User Manual

• AiPi-SCP-4.3 Factory Firmware User Manual: Download

▫️ Schematic

• AiPi-SCP-4.3 Schematic: Download

▫️ PCBA Resources

• AiPi-SCP-4.3 PCBA Files: Download

▫️ Source Code and Firmware

• AiPi-SCP-4.3 Factory Firmware: Download

• AiPi-SCP-4.3 Bluetooth Proximity Wake-Up Firmware:

  • Download
  • Firmware User Manual

• AiPi-SCP-4.3 Factory Firmware Source Code: https://github.com/Ai-Thinker-Open/AiPi-Open-Kits

3. Additional Resources

---

• 4.3-inch Color LCD Specification Sheet: Download
