1. Overview

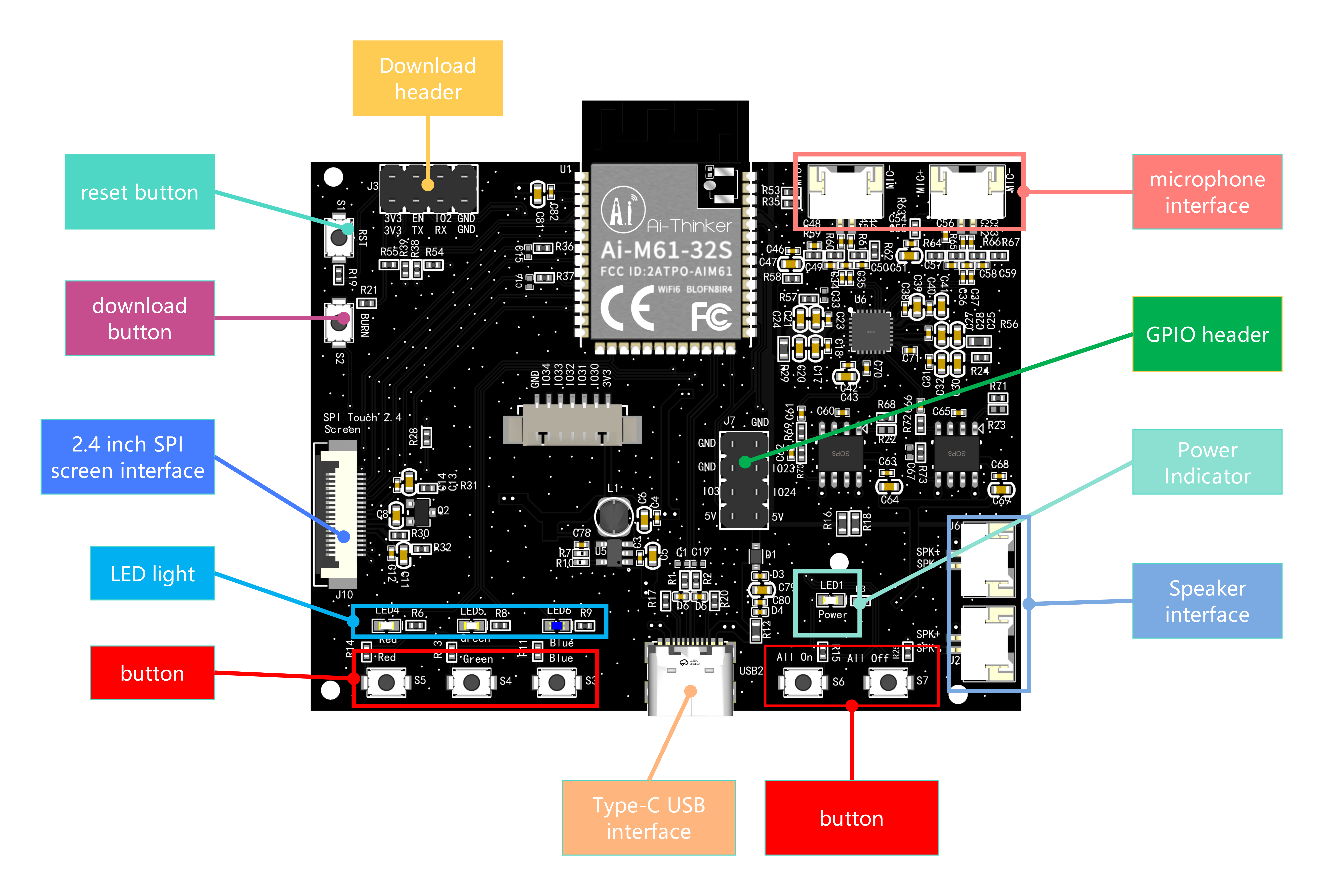

AiPi SCP-2.4 uses Ai-Thinker Ai-M61 module as the control core. The Type-C interface is used for power supply. The 2.4-inch RGB LCD screen is connected through the SPI interface, and the external audio circuit is used for voice broadcast and button group for physical control. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Dispaly, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.

2. Development data


2.1 Instructions

  1. AiPi-SCP-2.4 test firmware usage documentation CN EN

2.2 Schematic diagram

AiPi-SCP Schematic diagram: Click to download

2.3 PCB data

  1. Online PCB engineering address:https://oshwhub.com/ai-thiner_openteam/aipi-scp-2-4
  2. PCB project file: Click to download
  3. Engineering Bom: Click to download

2.4 Source code and firmware

  1. 2.4-inch screen test firmware Click to download
  2. 2.4-inch screen test firmware source address:https://github.com/Ai-Thinker-Open/AiPi-Open-Kits

3. Other information

4.Intelligent monitoring terminal


  1. LVGL UI project:click to download
  2. 3D shell:click to download
  3. RGB driver test firmware:click to download Firmware instructions:click to download
  4. Smart monitoring terminal usage tutorial:https://editor.csdn.net/md/?articleId=132227275
