1. Product Introduction

▫️ Overview

RF433 Series

• Ai-SG01: A wireless module based on the new generation PAN3210 RF chip from Pantech Microelectronics, with selectable frequency bands of 420-445MHz and 470-510MHz. It features a receiver sensitivity of -121dBm and a transmit power of +20dBm. Its core advantages lie in its ultra-miniaturized package and ultimate RF performance.

• SI4432: A wireless module based on the Silicon Labs SI4432 chip, with a frequency band of 410-525MHz. It has a receiver sensitivity of -117dBm, a transmit power of +20dBm, and a communication range of >1000 meters in open environments.

• BS01: A Sub-1GHz RF module based on the Si4463 chip, operating in the 119-1050MHz band, with a sensitivity of -126dBm. It supports ultra-low active/sleep power consumption and is suitable for small-size, low-cost IoT applications.

▫️ Ai-SG01 Features

• Operating Frequency Bands: 420-445MHz, 470-510MHz (Band selectable, switchable via hardware and software configuration)

• Maximum transmit power up to 20dBm (100mW), supports DPC (-20~20dBm), 1dB increments

• Module receive sensitivities: -121dBm@2.4kbps, -107dBm@50kbps, -103dBm@100kbps, 94dBm@500kbps

• Low spurious design: Harmonic suppression ≤-60dBc (2nd/3rd harmonics) at full load transmission, compliant with CE, FCC, and other regulations.

• Low ACPR design: Built-in predistortion engine achieves ≤-55dBc (50kbps FSK) at +20dBm output. The module's default data transfer rate range is 2 ~ 500kbps, with optional speeds of 2kbps ~ 2Mbps and 2kbps ~ 4Mbps (three speed ranges, switchable via hardware and software configuration).

• Industrial-grade standard design, operating temperature range -40~85℃ (optional -40~105℃).

• Rich interface options, supporting 4-wire SPI, 3-wire SPI, and 5 GPIOs.

• Wide voltage supply, supporting 1.8 ~ 3.8V (LDO mode).

• Sleep current as low as 300nA.

• Special features: Supports RSSI and LQI, supports Automatic Frequency Control (AFC), supports built-in 32K RC clock and external 32K crystal oscillator, supports Duty Cycle reception and transmission, supports automatic ACK.

• Supports whitening, FEC, CRC, Manchester code, and other functions.

• Stamp hole interface for easy integration.

▫️ SI4432 Features

• Operating Frequency: 433MHz

• Frequency Range: 240~960MHz

• Receiver Sensitivity: -117 dBm

• Maximum Output Power: +20dBm

• Data Transfer Rate: 1.2~128kbps

• Supports FSK, GFSK, and OOK Modulation

• 1.8~3.6V Power Supply

• Ultra-Low Power-Off Mode

• Digital Received Signal Strength Indicator (RSSI)

• Timed Wake-up Function

• Automatic Antenna Matching and Bidirectional Switching Control

• Configurable Packet Structure

• Preamble Detection

• 64-Byte Transceiver Data Register (FIFO)

• Low Voltage Detection

• Temperature Sensing and 8-bit Digital-to-Analog Converter

• Operating Temperature Range: -40°C~+85°C

• Integrated Voltage Regulator

• Frequency Hopping Function

• Power-On Reset Function Built-in crystal adjustment function

▫️ Application areas

It can be widely used in various Internet of Things (IoT) applications:

•　Wireless remote control 　　　　　　•　Remote meter reading

•　Wireless access control　 　　　　　•　Wireless security alarm

•　Industrial Control 　　　　　　 　　　•　Smart Home

•　Health monitoring 　　　　　　 　　　•　Sensor Networks

•　Tire pressure monitoring 　　　　　　 •　Active electronic tags

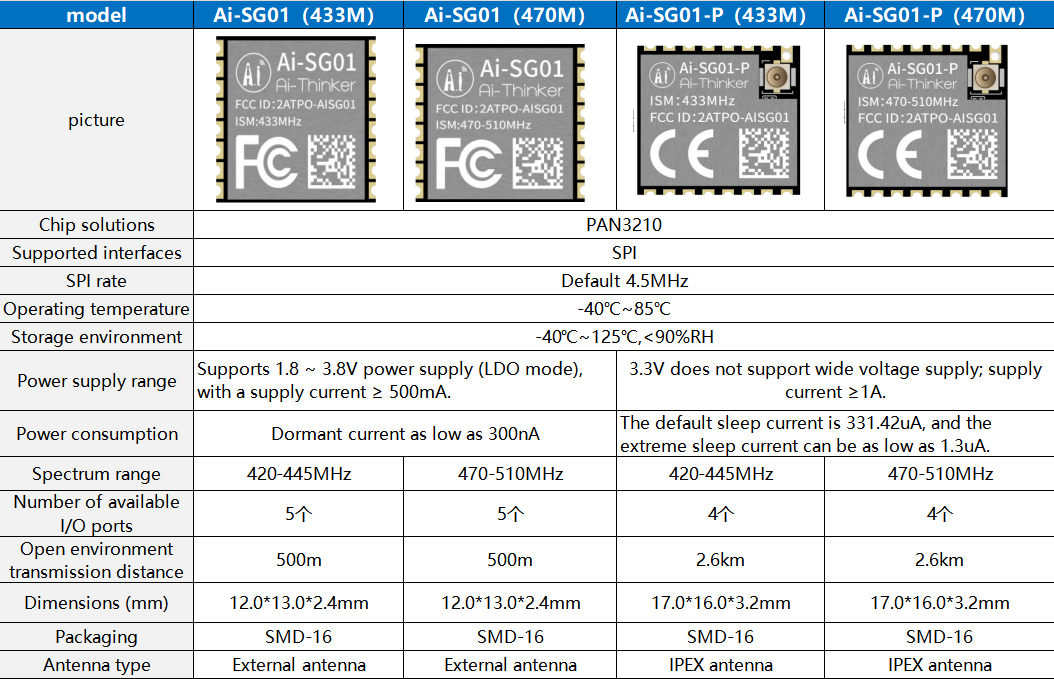

▫️ Selection Table

Selection Table: download

2. Specifications, PCB packages, and examples

Module Name	Datasheets	PCB packaging	User Manual	Chip manual	Reference routine
SI4432	-	download	view	download	download
BS01	-	download	-	-	-
Ai-SG01	view	download	-	view	view
Ai-SG01-P	view	download	-	view	view

3.Firmware related

Module model	Firmware number	Firmware Description	Version	Link	source code
Ai-SG01-Kit	-	Ai-SG01	V1.1.2	download	-
Ai-SG01-P-Kit	-	Ai-SG01-P	V1.1.0	download	-

4.Fixed frequency method

Ai-SG01 module frequency fixing method: download

Ai-SG01-P Module Frequency Fixing Method: download

5.Power consumption report

Ai-SG01 Module Power Consumption Report: download

Ai-SG01-P Module Power Consumption Report: download

6.FAQ

Ai-SG Series FAQ Guide：download

7.Module Reliability Test Report

Ai-SG01 Module Reliability Test Report：download

Ai-SG01-P Module Reliability Test Report：download
